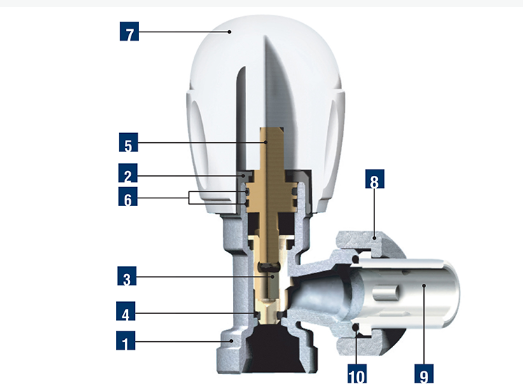

组件pz。材料

1身体1 uni EN 12165 CW617N镀镍

2环1 uni EN 12164 CW614N镀镍

3快门1 uni EN 12164 CW614N

4 o形环快门1 nbr

5螺栓1 uni EN 12164 CW614N

6 o形环螺栓1三元乙丙橡胶

7旋钮1 abs白、9003

8螺母1 uni EN 12165 CW617N镀镍

9尾单EN 12164 CW614N镀镍

10 o形环尾1 nbr

特征信息请求

一般特征

范围:3/8”和1/2”,直角或直,对铜、多层,

PEX,PP、PB或钢管。

螺母和尾巴:线程ISO 228/1(DIN 259)

操作条件

最大工作压力:10条。

最大压差:6条。

最大工作温度:+ 100°C。

压降:见图技术附件。

对单件海豹,螺纹24 x19 1/2”,看到第一章“FIVPress系统”。

配件,参见“Oasi和吉卜力阀门配件”
